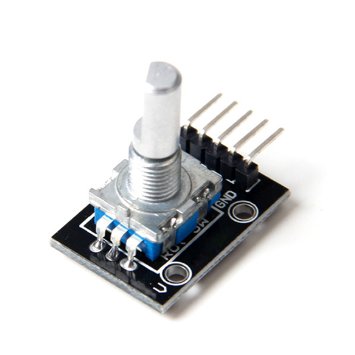

Rotary Encoder Module KY-040 for Arduino

The Keyes KY-040 rotary encoder is a rotary input device (as in knob) that provides an indication of how much the knob has been rotated AND what direction it is rotating in.

It’s a great device for stepper and servo motor control. You could also use it to control devices like digital potentiometers.

KY-040 Pin Outs

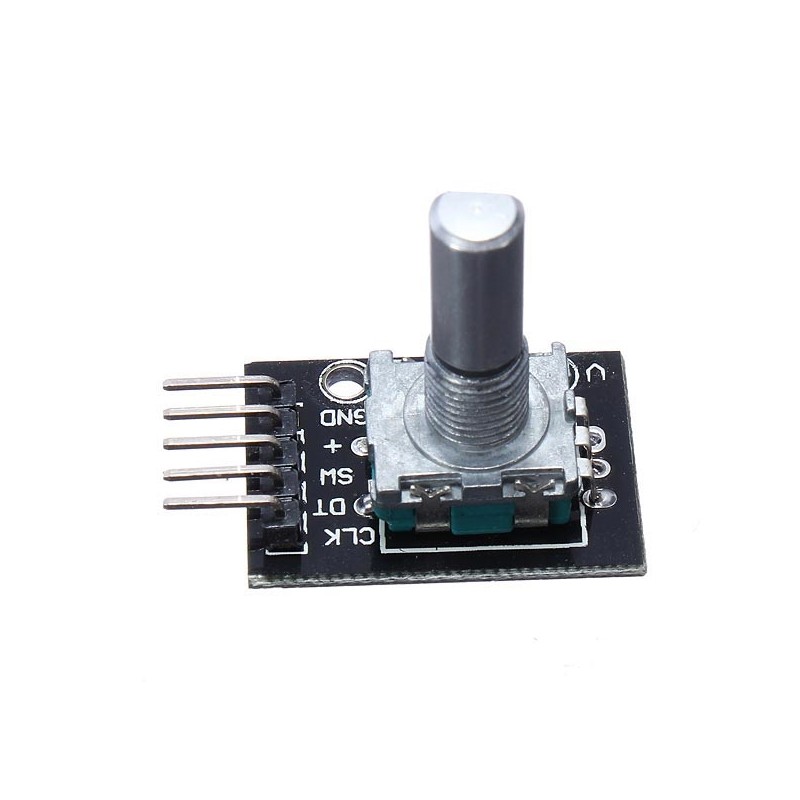

The pin outs for this rotary encoder are identified in the illustration below.

Keyes KY-040 Rotary Encoder Pin OutsThe module is designed so that a low is output when the switches are closed and a high when the switches are open.

The low is generated by placing a ground at Pin C and passing it to the CLK and DT pins when switches are closed.

The high is generated with a 5V supply input and pullup resistors, such that CLK and DT are both high when switches are open.

Not previously mentioned is the existence of of push button switch that is integral to the encoder. If you push on the shaft, a normally open switch will close. The feature is useful if you want to change switch function. For example, you may wish to have the ability to between coarse and fine adjustments.

The Arduino Sketch

This is  a simple sketch that shows how to count the encoder position and how to determine direction of rotation.    It has no switch debounce,  nor does it use interrupts.    A fully developed application might need to incorporate these in order to make it robust.

 int pinA = 3;  // Connected to CLK on KY-040
 int pinB = 4;  // Connected to DT on KY-040
 int encoderPosCount = 0;
 int pinALast;
 int aVal;
 boolean bCW;

 void setup() {
   pinMode (pinA,INPUT);
   pinMode (pinB,INPUT);
   /* Read Pin A
   Whatever state it's in will reflect the last position
   */
   pinALast = digitalRead(pinA);
   Serial.begin (9600);
 }

 void loop() {
   aVal = digitalRead(pinA);
   if (aVal != pinALast){ // Means the knob is rotating
     // if the knob is rotating, we need to determine direction
     // We do that by reading pin B.
     if (digitalRead(pinB) != aVal) {  // Means pin A Changed first - We're Rotating Clockwise
       encoderPosCount ++;
       bCW = true;
     } else {// Otherwise B changed first and we're moving CCW
       bCW = false;
       encoderPosCount--;
     }
     Serial.print ("Rotated: ");
     if (bCW){
       Serial.println ("clockwise");
     }else{
       Serial.println("counterclockwise");
     }
     Serial.print("Encoder Position: ");
     Serial.println(encoderPosCount);

   }
   pinALast = aVal;
 }
